Description

This kit allows the OEM footpegs to be repositioned into four selectable positions while retaining the original step components.

The included shift pedal extension allows the shift peg position to be adjusted in two selectable positions, enabling the rider to fine-tune the riding ergonomics after changing the footpeg position.

Manufactured from CNC-machined A2017 aluminum, the brackets provide excellent rigidity and a refined billet appearance.

Designed and manufactured in Japan.

Availability: Made to order
Production time: 7–14 business days.

Specifications

Material: A2017 Aluminum
Manufacturing: CNC Machined
Finish: Black Anodized
Country of Origin: Japan

Adjustable Positions

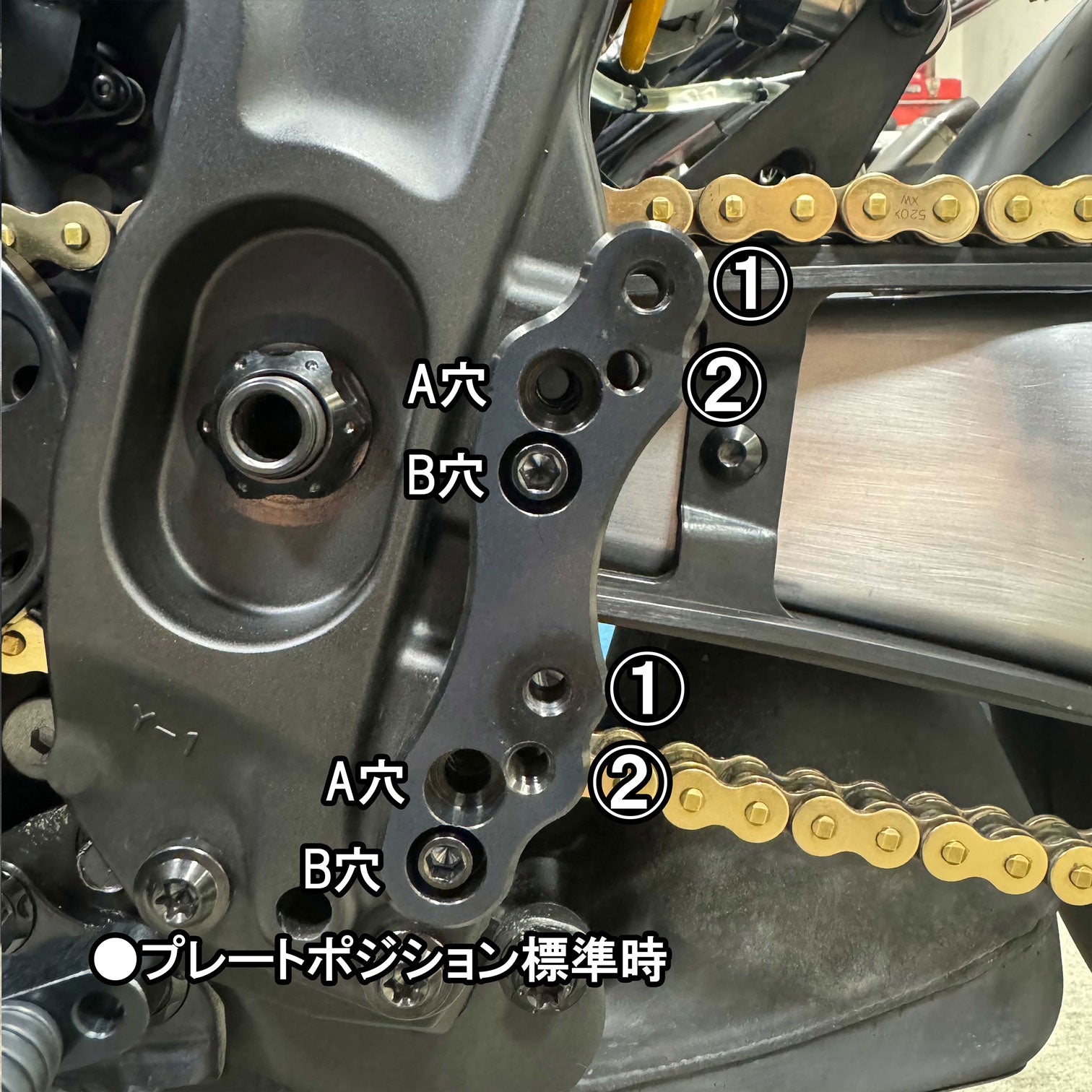

Standard plate position

1. Hole A → 10 mm Back / 20 mm Up

2. Hole B → 10 mm Back / 20 mm Up

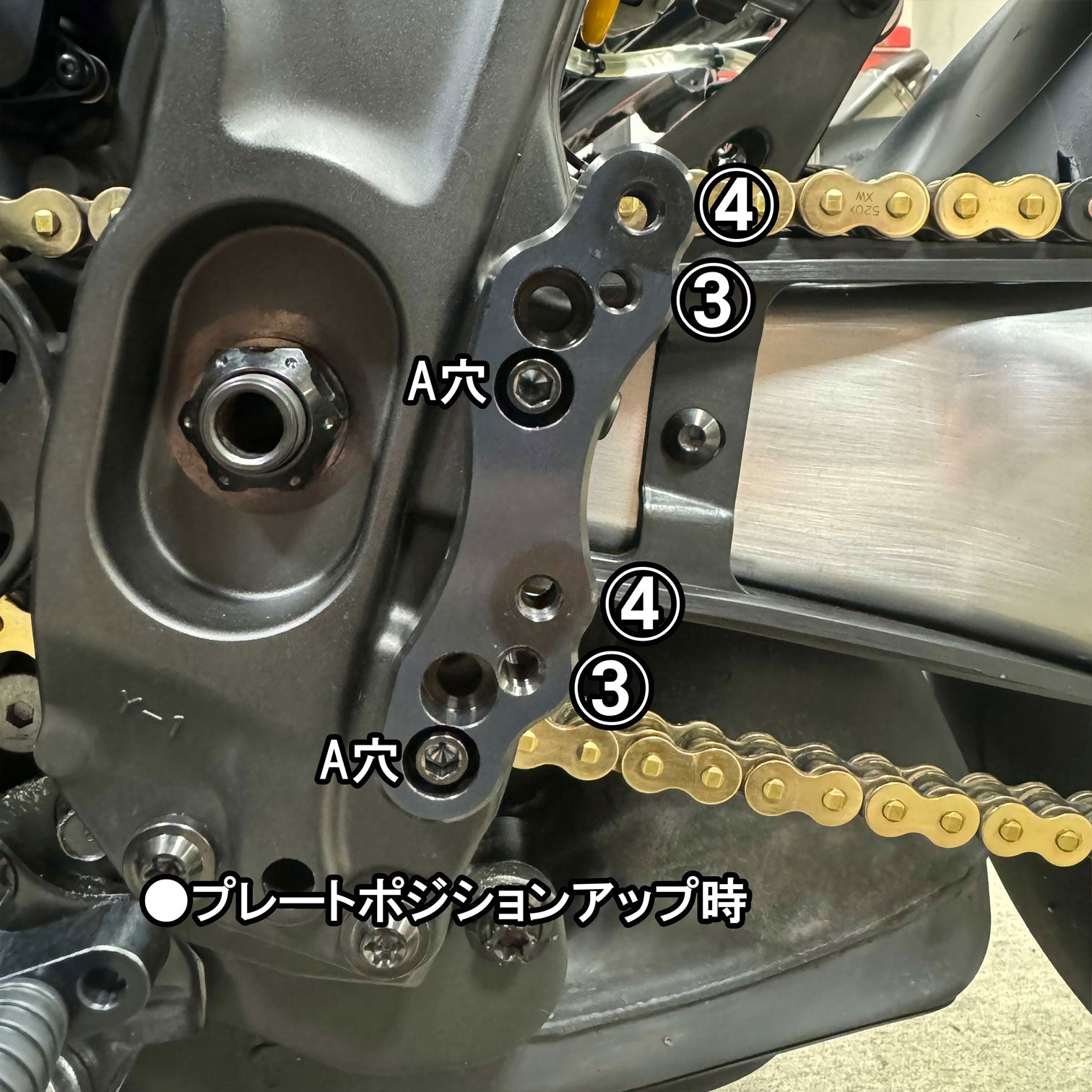

Upper plate position

3. Hole A → 10 mm Back / 20 mm Up
   (same position as Standard Position 1)

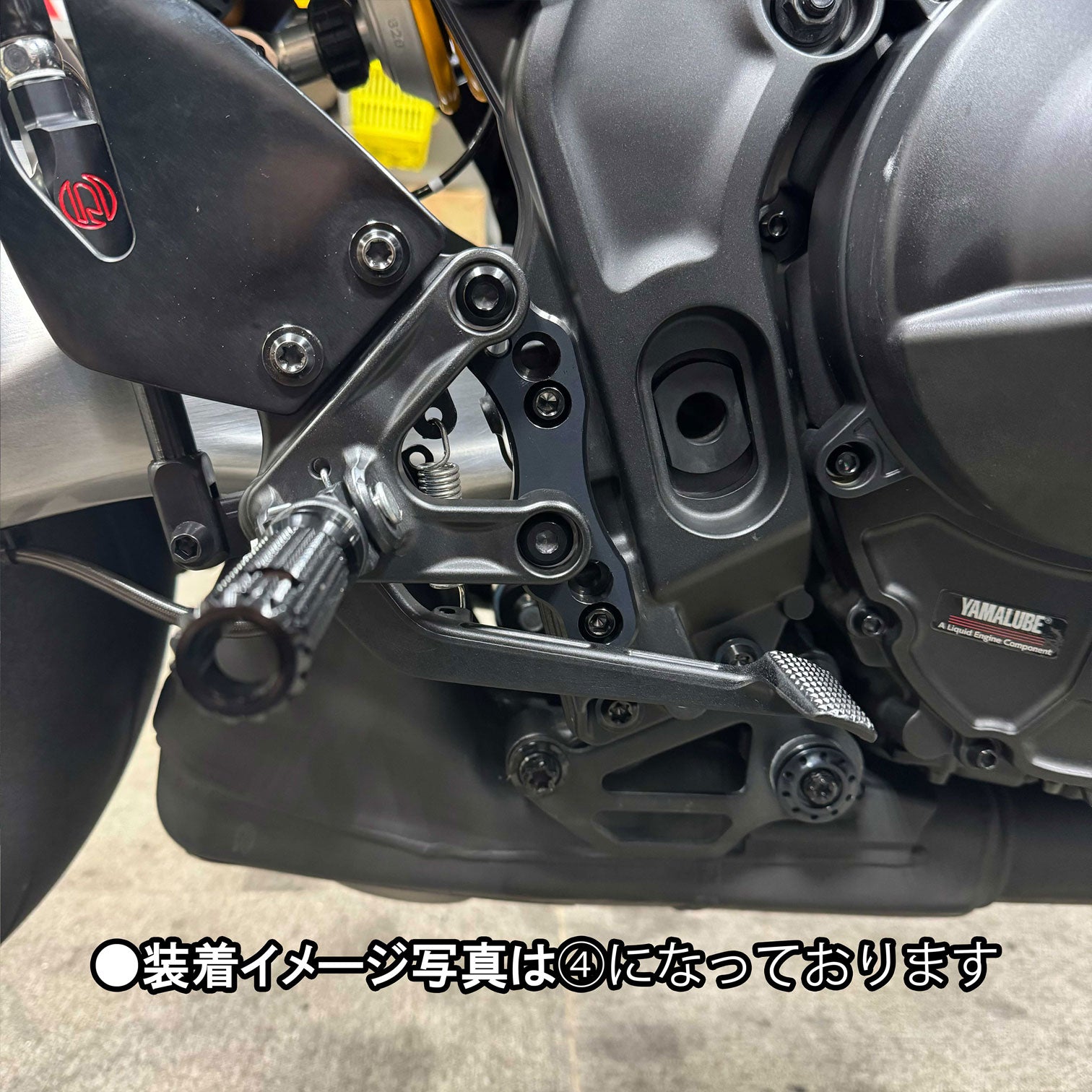

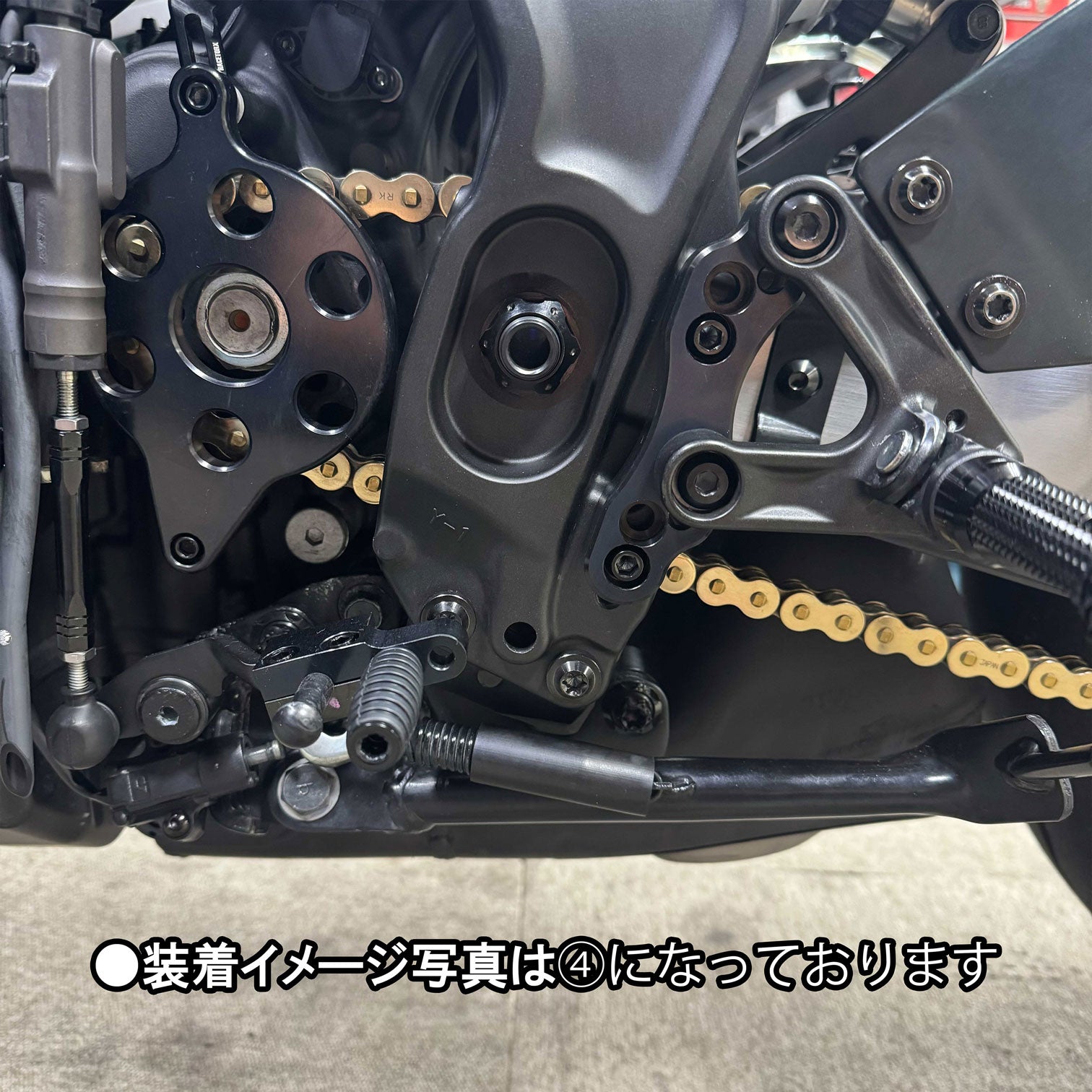

4. Hole A → 10 mm Back / 30 mm Up

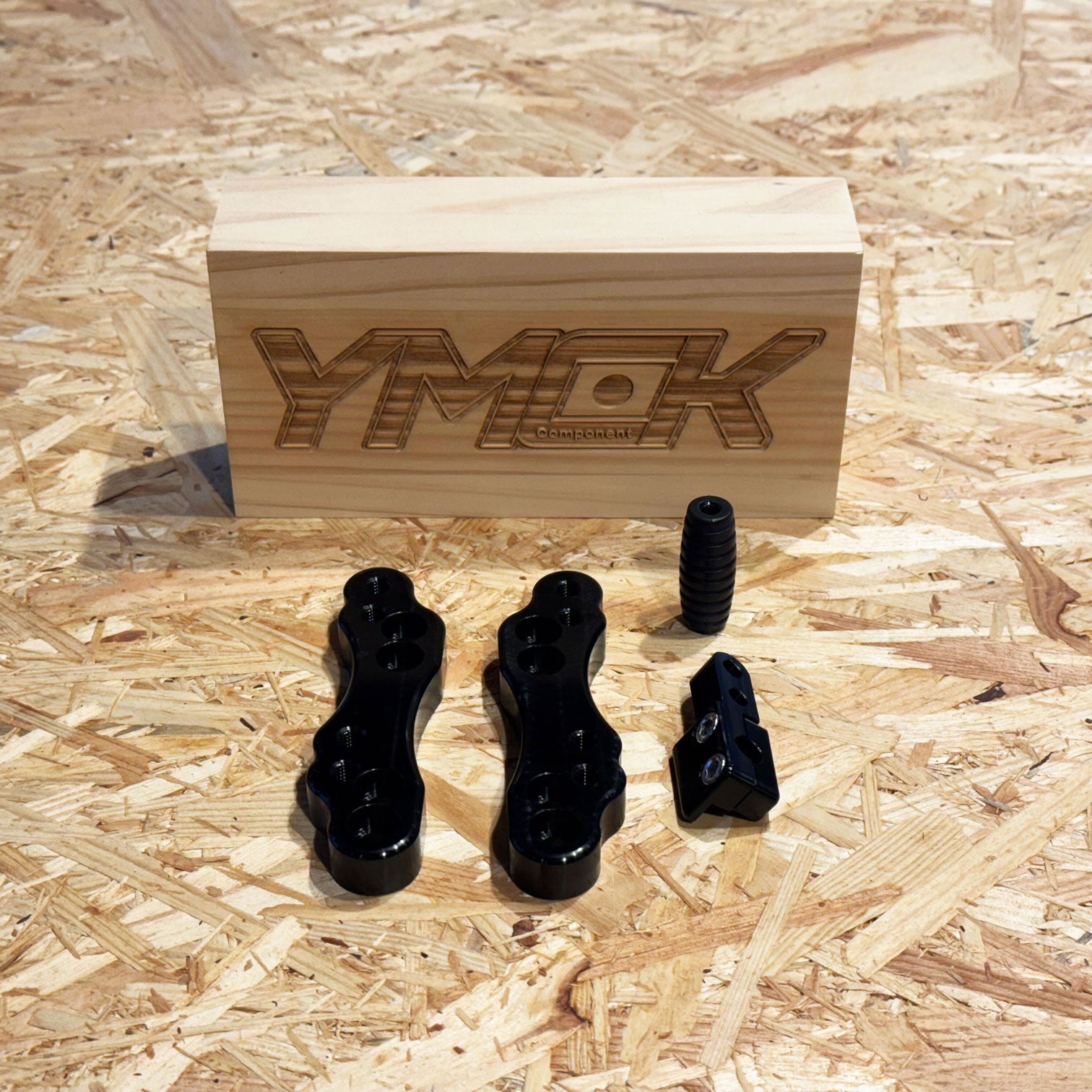

Package Includes

Left bracket ×1
Right bracket ×1
Bracket mounting bolts ×4

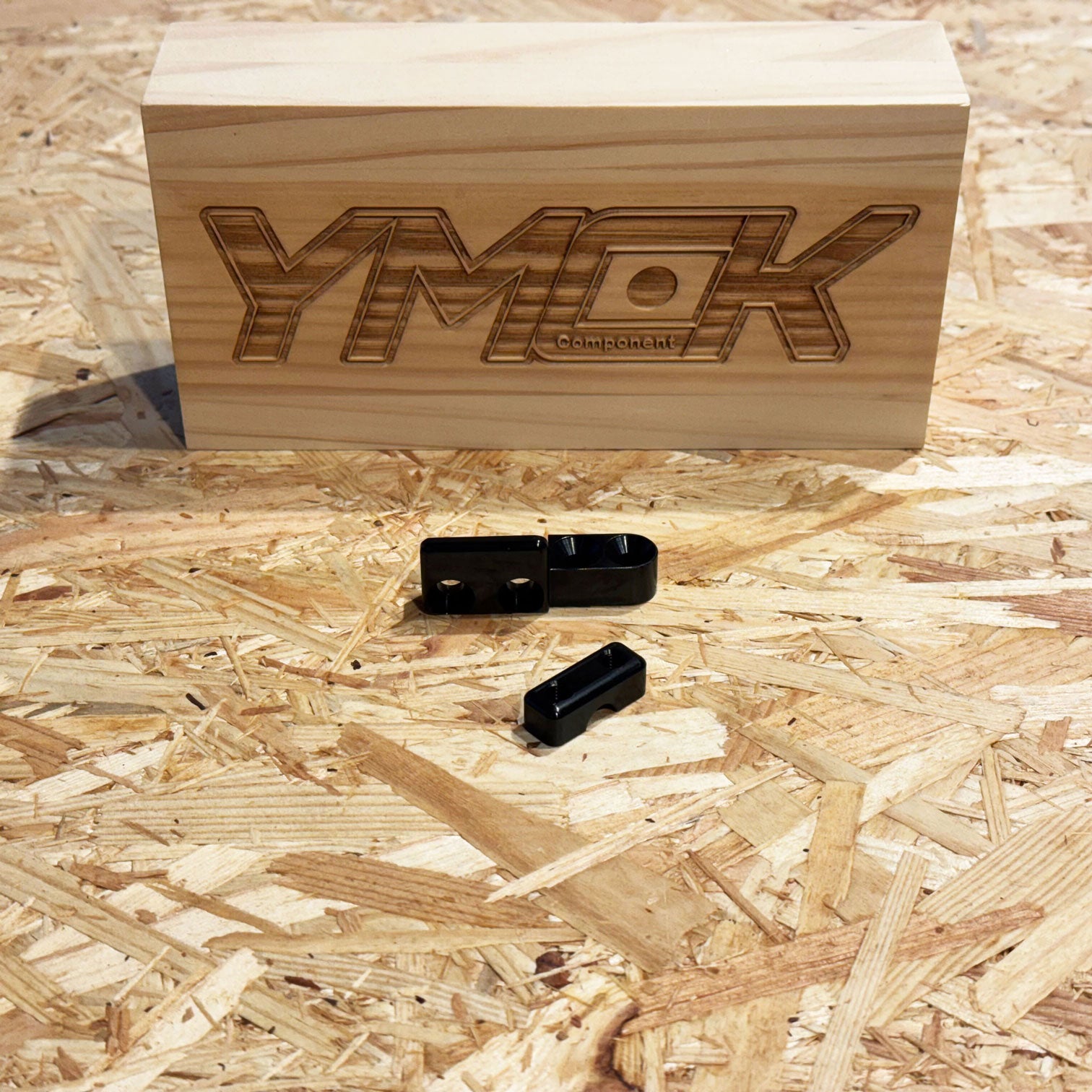

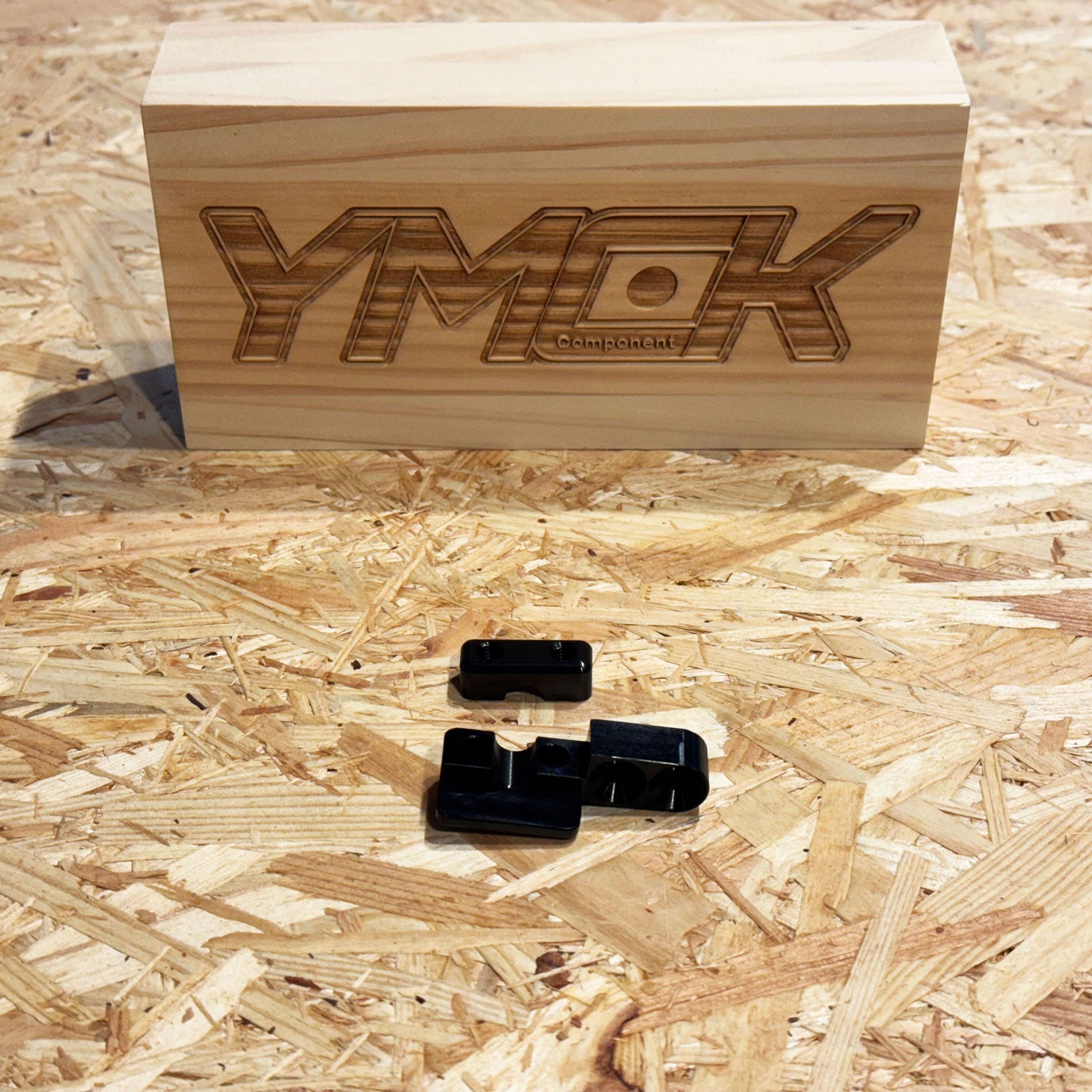

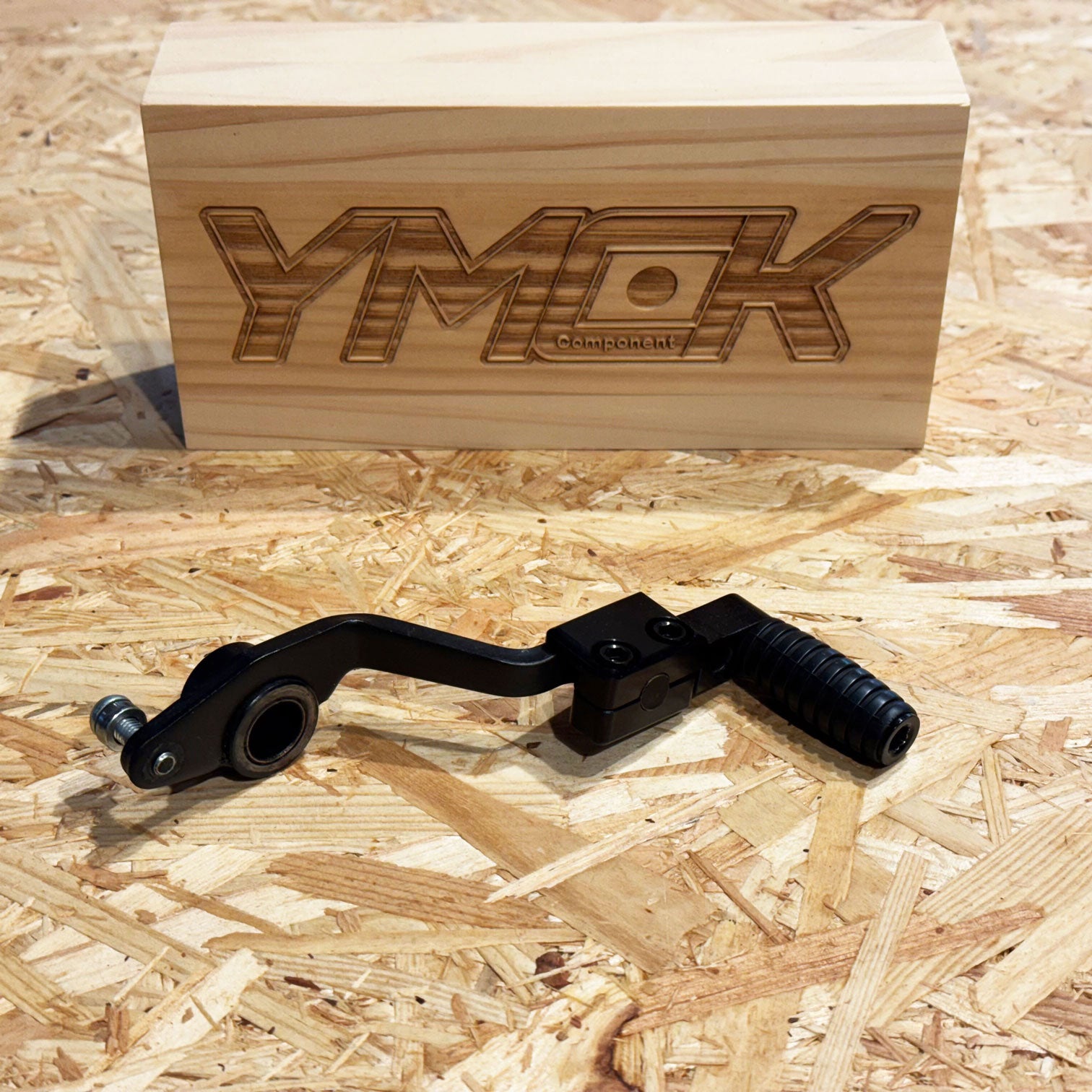

Shift pedal extension ×1
Extension mounting bolts ×2
Shift peg ×1

Fitment

Yamaha XSR900 (2022–)
Yamaha XSR900GP (2024–)
Yamaha MT-09 / MT-09 SP (2021–)

For MT-09 models, interference with the passenger step may occur. Relocation or removal of the passenger step is recommended.

Notes

• Product specifications may change without notice.

• Actual color may vary depending on monitor settings and lighting conditions.

• Minor machining marks may be present due to the CNC manufacturing process.

• Anodized finish color may vary slightly.

• Due to the anodizing process, slight contact marks may be visible.

• Images may include other products.
